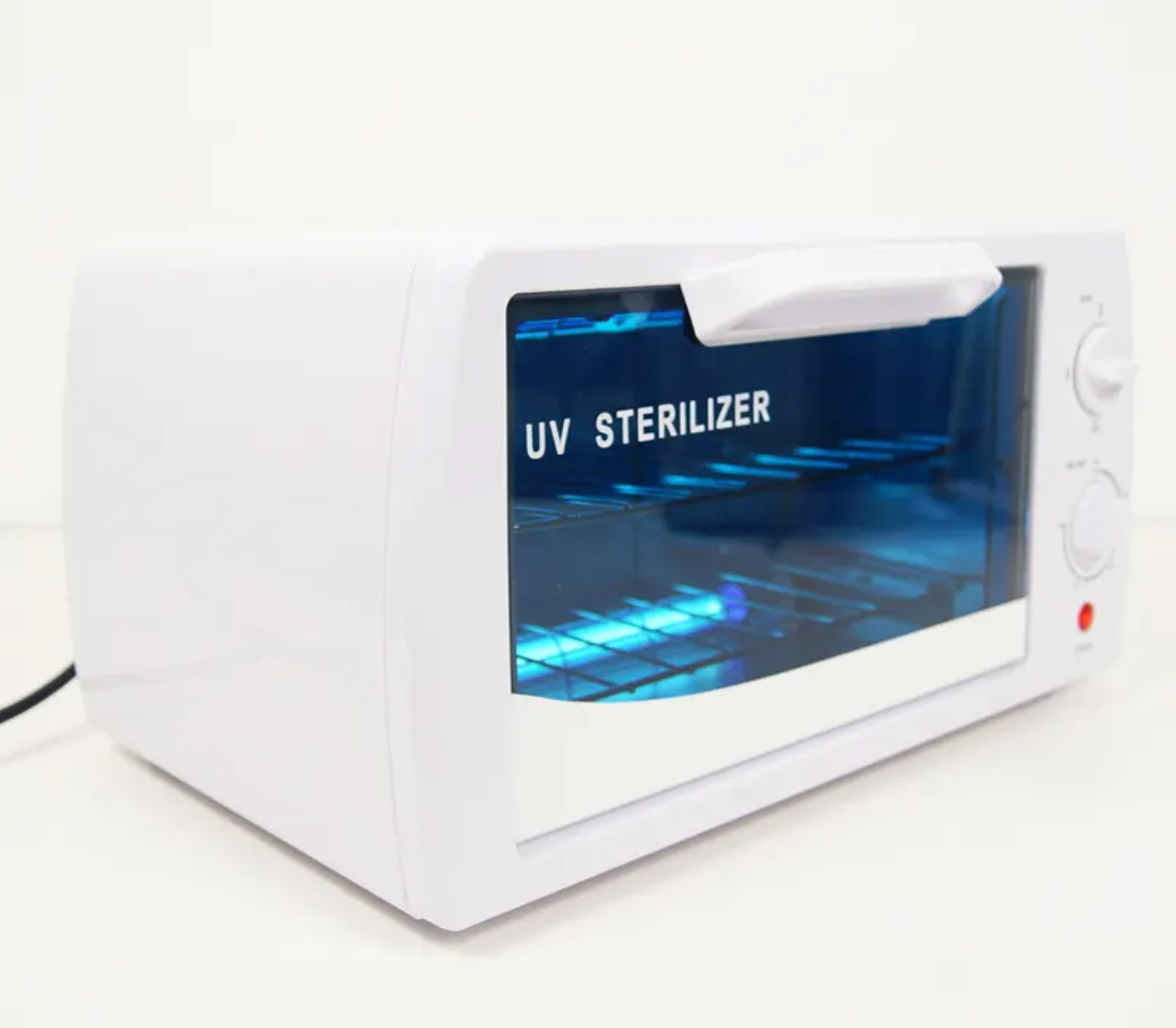

FY-9180 Sterilizer Double Lamp Tube Disinfection Box 14L

FY-9180 Sterilizer Double Lamp Tube Disinfection Box 14L

Rs8,550.00
Rs8,500.00 Rs8,550.00
Discount Rate Sold out

Opt

Low stock: 6 left

Important Note: These videos are for technique demonstration and operation reference only. While the item in the video may vary slightly in appearance or packaging from our actual stock, the professional functions and usage steps are exactly the same. Thank you for your understanding.

Click Here To Learn : HOW TO USE

FY-9180 Professional Double-Tube UV Sterilizer (14L)

USER MANUAL

The FY-9180 is a professional-grade UVC sterilization cabinet designed for high-traffic salons, clinics, and offices. Utilizing dual 254nm + 185nm UV lamps, it delivers a 99.9% disinfection rate by combining direct UV-C radiation with Ozone gas to reach every corner and crevice of your tools.

1. Technical Specifications

  • Model: FY-9180

  • Capacity: 14 Liters (Large Capacity)

  • Wavelength: 254nm (UV-C) + 185nm (Ozone Generation)

  • Disinfection Method: Dual-Tube Ultraviolet + Ozone ($O_3$)

  • Voltage: 220V - 240V ~ 50Hz (Standard for Nepal)

  • Timer Range: 0 – 60 Minutes (Mechanical)

  • Shell Material: High-Impact Powder Coated Iron

  • Door Material: Tempered Anti-UV Glass

  • Dimensions: $380 \times 253 \times 210 \text{ mm}$

2. Control Panel & Operation

The unit features two independent mechanical knobs for precise control:

  1. Timer Knob (Upper): Rotate clockwise to set the duration (Max 60 minutes).

  2. Mode Selector Knob (Lower):

    • UP: Activates only the top UV lamp.

    • DOWN: Activates only the bottom UV lamp.

    • UP & DOWN: Activates both lamps for maximum 360° sterilization intensity.

    • Vertex/Center: Power OFF.

  3. Auto Shut-Off Safety: The internal sensor will instantly turn off the UV lamps if the glass door is opened during a cycle to prevent skin or eye exposure.

3. Recommended Use Cases

This 14L unit is versatile enough for both salon tools and daily professional items:

  • Salon Tools: Scissors, carbon/plastic combs, makeup brushes, and rollers.

  • Medical/Dental: Surgical tools and diagnostic equipment.

  • Daily Items: Currency (banknotes), mobile phones, masks, wallets, and stationery.

4. Maintenance & Safety

  • No Liquids: Ensure all items are completely dry before placing them inside. Never use this unit for liquids or food.

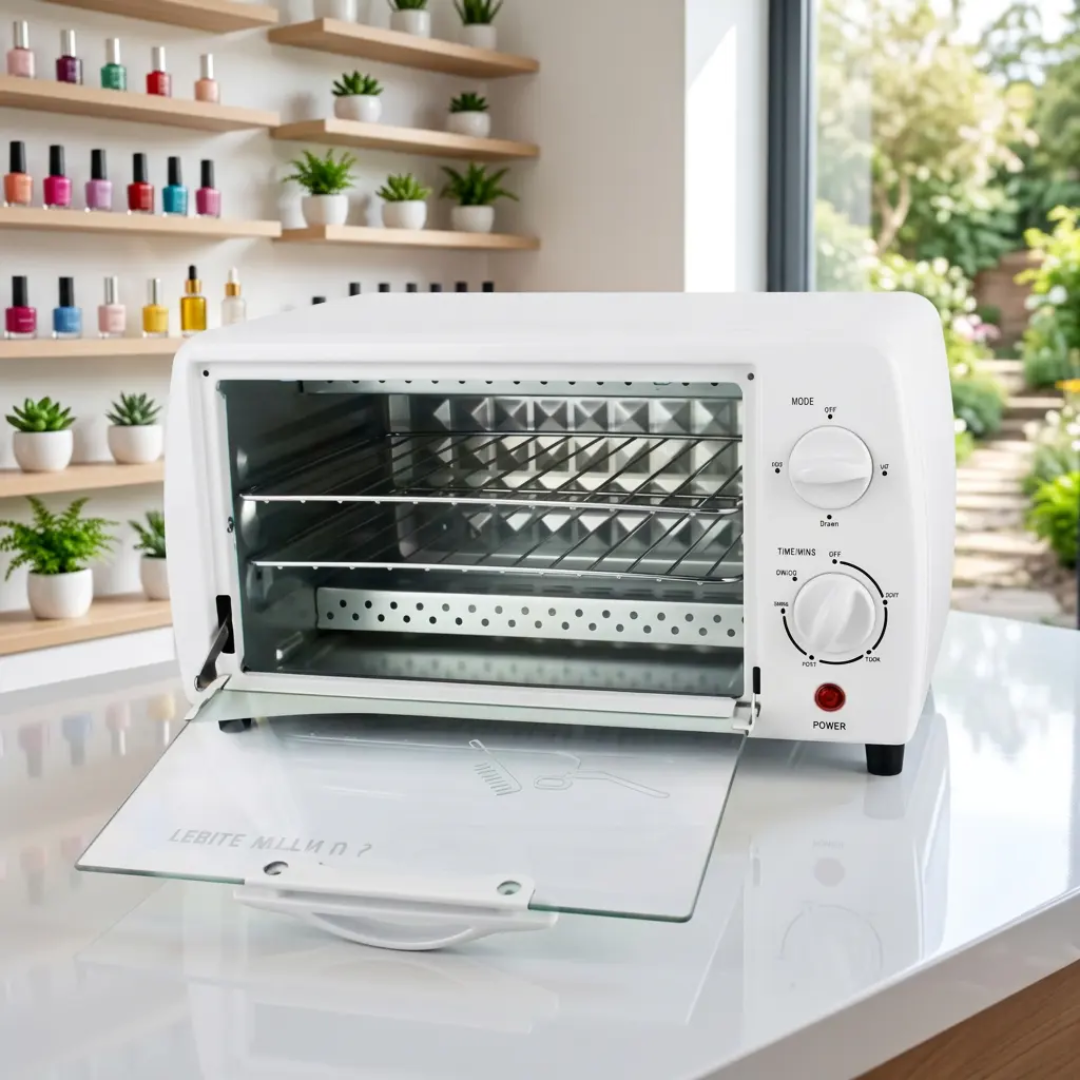

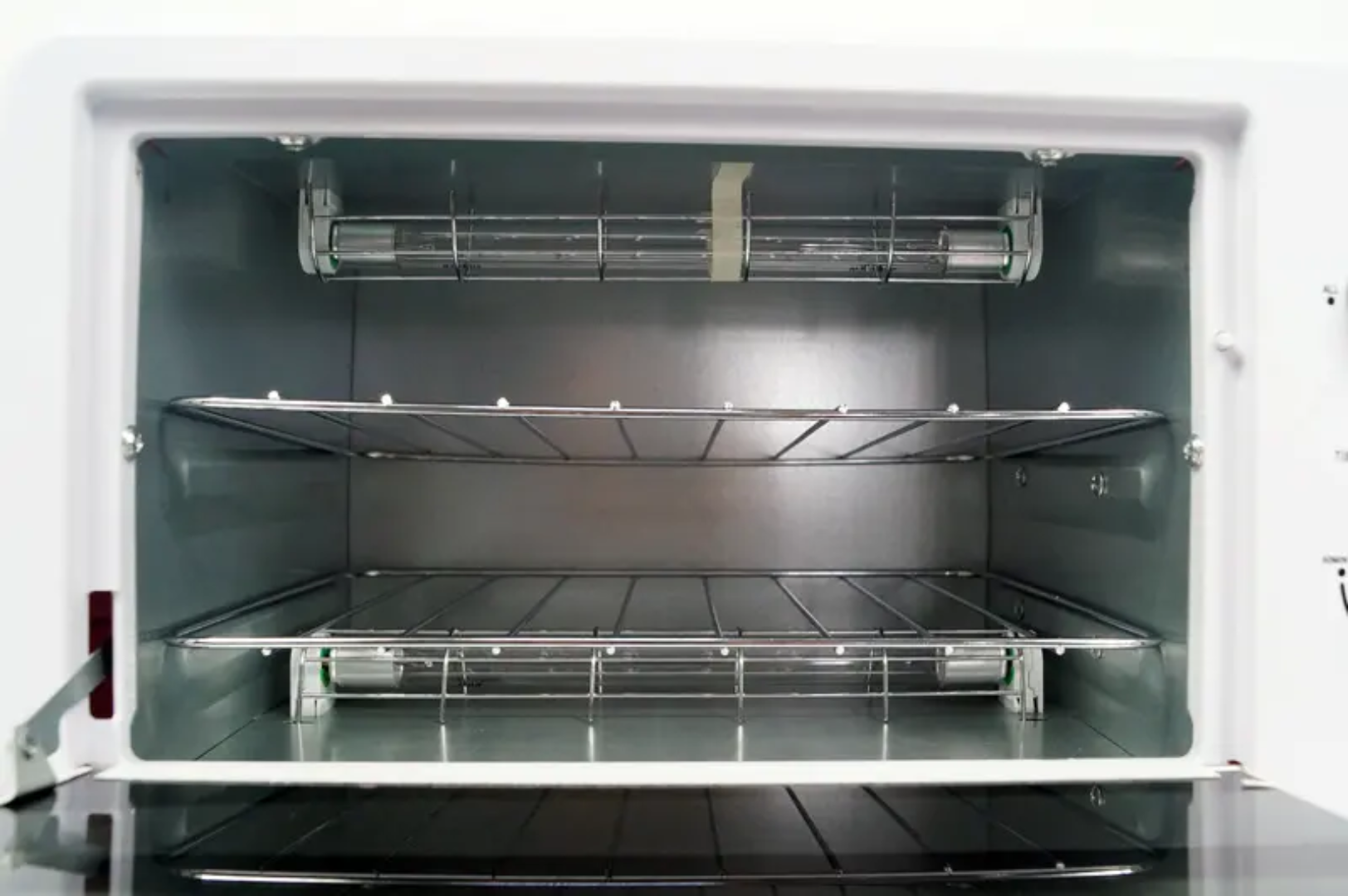

  • Loading: Use the two included stainless steel grid shelves to separate items. Do not stack items too densely; leave space for the Ozone gas to circulate.

  • Cleaning: Wipe the interior stainless steel and glass with a dry, soft cloth. Unplug the unit before cleaning.

  • Lamp Care: Avoid touching the UV tubes with bare fingers. If the lamps become dusty, wipe them gently with an alcohol swab when cool.
