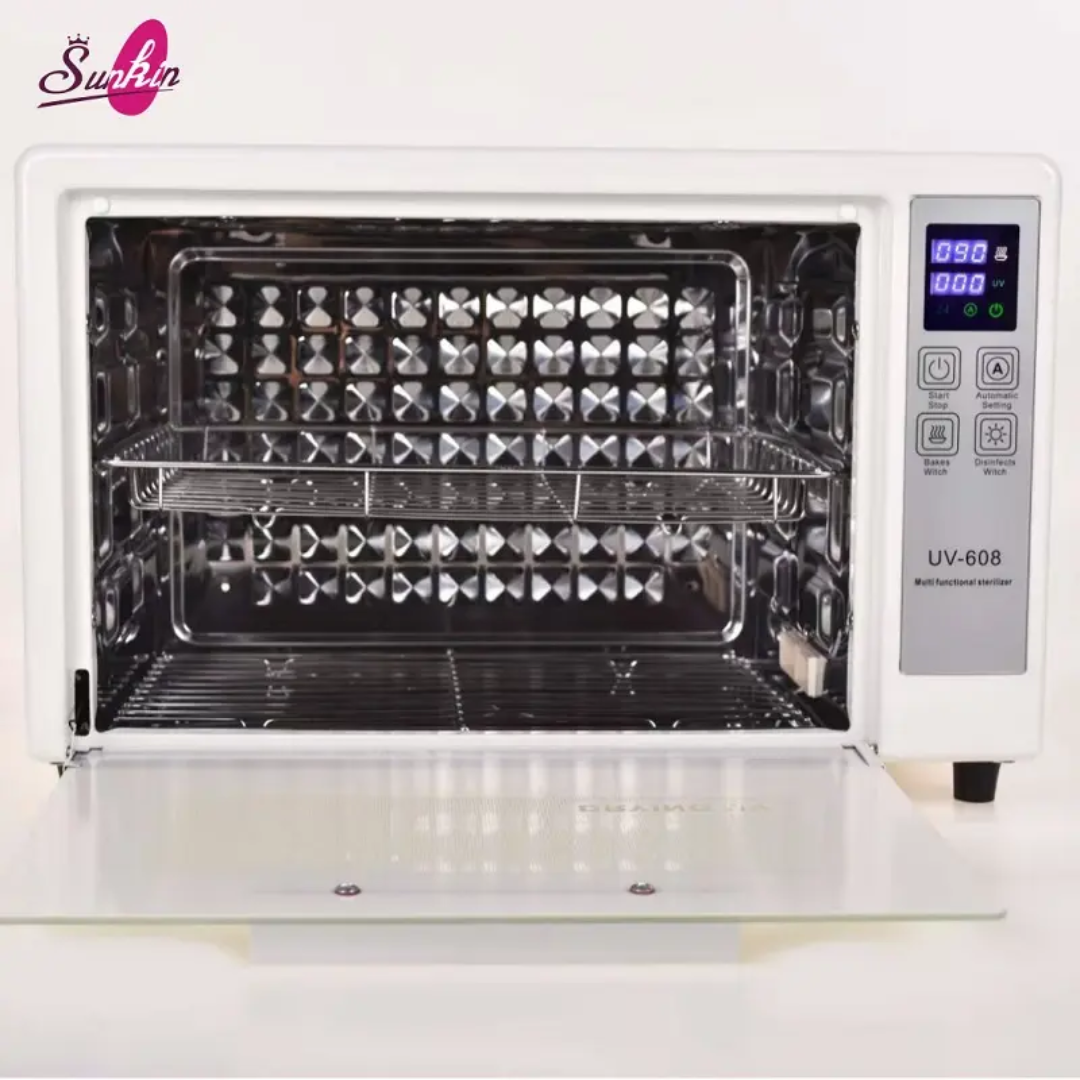

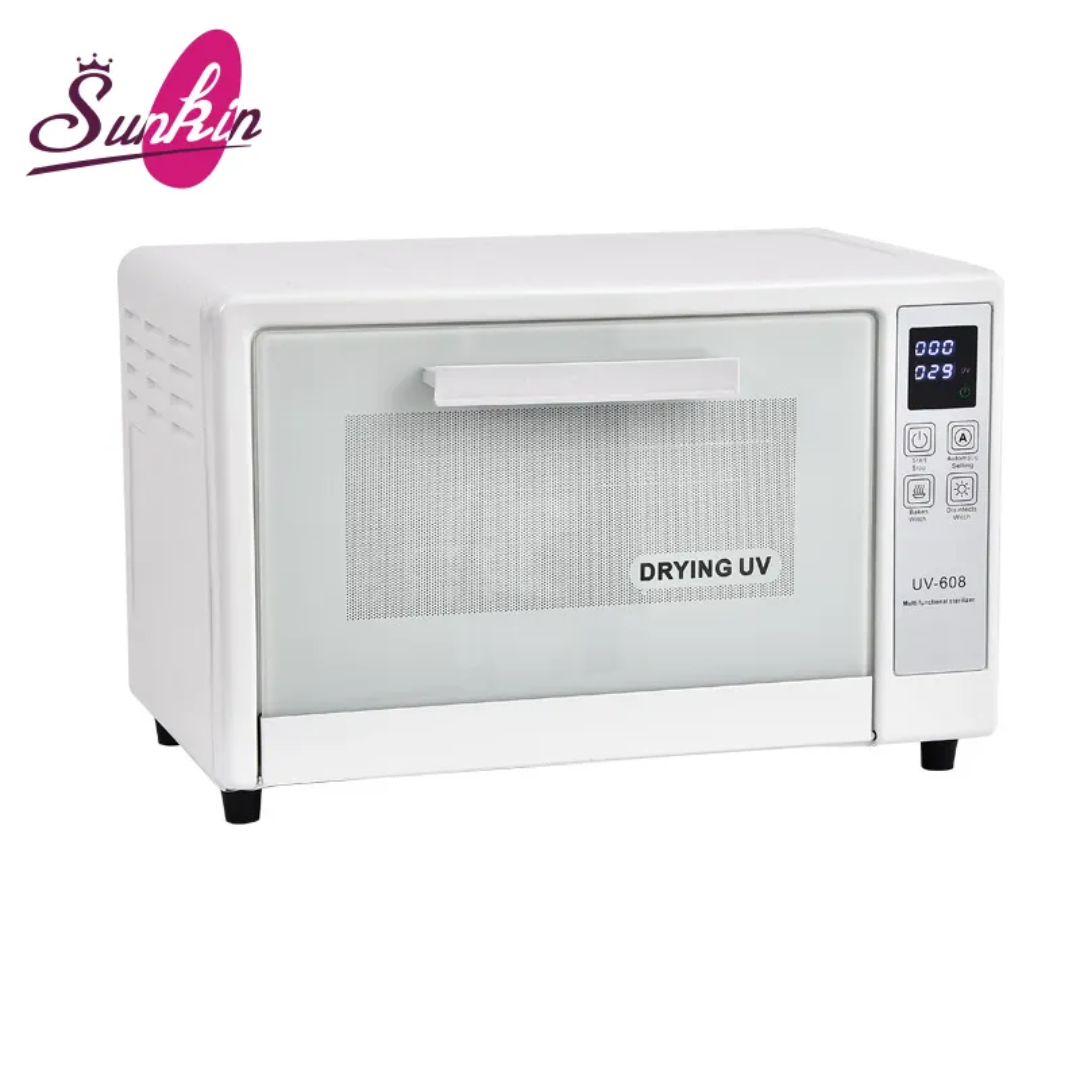

UV608 Ultraviolet Sterilizing Cabinet with Drying 24L

Click Here To Learn : HOW TO USE

1. Technical Specifications

• Model: UV-608

• Functions: Drying + UV Sterilization + Ozone ($O_3$)

• Total Capacity: 24 Liters

• Rated Power: 230W

• Max Temperature: 85°C (185°F)

• UV Lamp: 6W | 185nm Wavelength | 6,000-hour Lifespan

• Internal Material: 430 Professional Stainless Iron

• External Material: Powder-coated Steel Plate

• Door Material: Tempered Glass

• Dimensions: * Outer: $42 \times 25 \times 27.5 \text{ cm}$

  • Inner: $31 \times 20.5 \times 24.5 \text{ cm}$

2. Control Panel Guide

The digital interface allows for precise control over the sterilization cycle:

• Power Button: Turn the main unit ON/OFF.

• Drying Button: Activates the 85°C constant-temperature heating system to remove moisture and warm towels.

• UV/Ozone Button: Activates the 185nm UV lamp. Note: Ozone is generated naturally by the 185nm wavelength to reach areas light cannot touch.

• Timer Display: Shows the remaining time for the selected cycle.

• Indicator Lights: Confirms which functions (UV or Drying) are currently active.

3. Operating Instructions

1. Placement: Place the unit on a flat, stable, and dry surface. Ensure there is at least 10cm of space around the vents for airflow.

2. Loading: Place clean, damp towels or pre-cleaned tools on the stainless steel trays. Do not overstuff the cabinet; ensure air can circulate between items.

3. Start Cycle: Close the tempered glass door firmly. Press the Power button, then select your desired mode (Drying, UV, or both).

4. Completion: Once the timer reaches zero, the unit will beep. Open the door carefully, as towels and tools may be hot (up to 85°C).

4. Why "Triple-Action" Sterilization?

• UV Light (185nm): Directly destroys the DNA/RNA of microorganisms on the surface of tools.

• Ozone ($O_3$): As a gas, ozone penetrates the fibers of towels and into the hinges of tools where UV light cannot reach.

• Heat (85°C): Effectively dries towels to prevent the growth of mold and mildew while providing a luxury warm-towel experience for clients.

5. Maintenance & Safety

• Daily Cleaning: Wipe the interior stainless steel walls with a soft, dry cloth after the unit has cooled to remove any condensation.

• UV Lamp Care: Do not touch the UV bulb with bare hands, as skin oils can reduce its lifespan. Wipe the bulb with an alcohol swab if it becomes dusty.

• Water Tray: Check and empty the bottom water collection tray regularly if you are drying damp towels.

• Safety Lock: The UV light will automatically shut off if the door is opened during a cycle to protect your eyes and skin. Never stare directly at the UV light.

6. Important Warnings

• Compatible Items: Suitable for towels, metal tools, and UV-resistant plastics. Do not place flammable items or non-heat-resistant plastics inside.

• Unplug: Always disconnect from the power source when cleaning or when not in use for extended periods.

• Ventilation: Ensure the side vents are never covered during operation.
